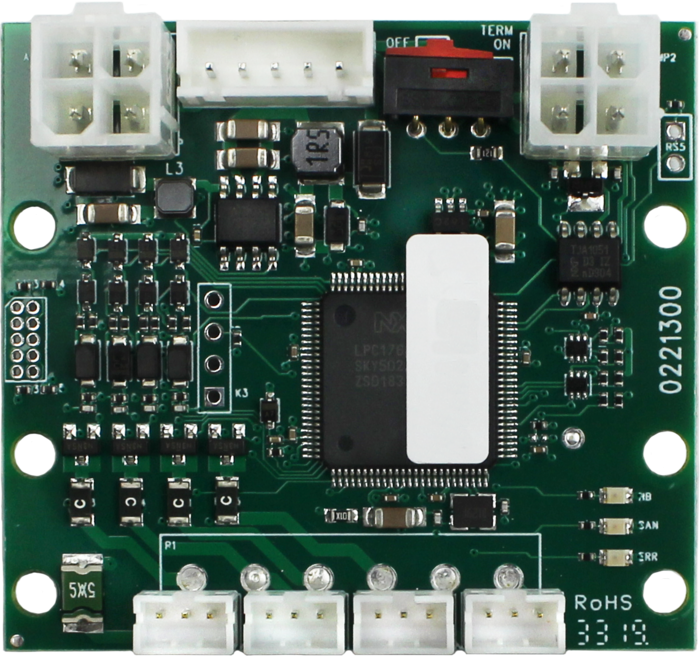

CAN board, 4 in-/outputs, JST connector
*IO4-CAN-CL
The IO4-CAN-CL is a simple and convenient solution for handling signals on the CANopen Lift protocol, such as landing calls.
Product description
Up to four configurable input/outputs can be used. Utilizes the CANopen-Lift protocol. JST connectors are used on the PCB to connect also the inputs/ outputs.
The configuration is made through the CANopen Lift software CANwizard. For easy installation, two DIN rail brackets are included together with one *CABLE09 for the CAN communication and one *CABLE10 for input/output. Note that when more than one input/output is used, there is need for additional cables.
The memory chip (EEPROM) on the unit is detachable and can be put on another IO4-CAN CL. In this way, the configuration can easily be transferred between units.
Product sheet
Technical data
Connector: JST connectors for CANopen Lift communication
Inputs: 4 configurable in-/outputs, JST connector

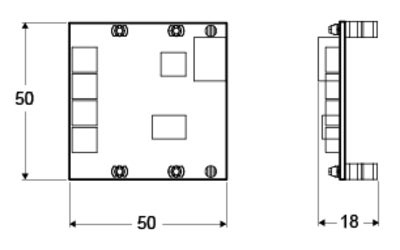

Size (HxWxD): 50 x 50 x 18 mm
Features
Four (4) configurable inputs/outputs
Configuration via the CANopen Lift software CANwizard
Two (2) DIN rail brackets included
*CABLE09 (3m) with JST connector for CAN communication included
*CABLE10 (3m) with JST connector for input/output supplied
Removable memory chip (EEPROM)
