SafeLine SL6 voice station, surface mount design with pictogram lenses & button
*SLB3-SMD-PIC-B
The thinner & all-in-one voice station for the SL6
Product description
An updated and even thinner version of the voice station for the lift emergency telephone SL6. This sleek design allows for the station to truly blend in with a uniform look. As part of the SLB3 series, this voice station comes with only two address selectors, so you don’t have to bother with setting up the station’s address manually.
This version of the voice station is delivered with a front plate along with integrated pictogram lenses and an alarm button for surface mounting on the wall of the lift car. As a complete all-in-one solution, this station fully removes the need for external components and is easily mounted with the supplied mounting bracket for a quick and smooth installation.
Product sheet
Technical data

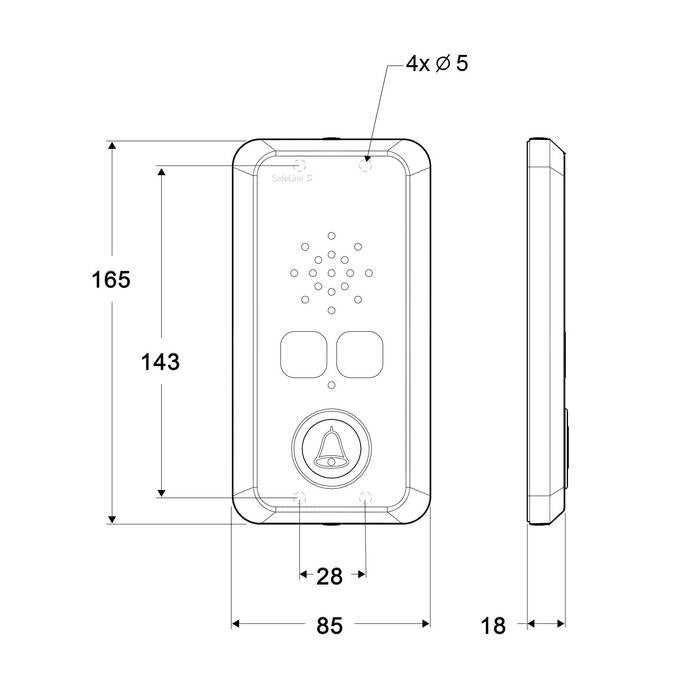

Size (HxWxD): 165 x 85 x 18 mm
Features
Thinner design
Only 2 address selectors
All-in-one solution
Mounting bracket included
Quick installation with only two screws
Connection of external pictograms possible
In compliance with EN 81-28 2018
Included in package
Manual
Modular cable, JST 6 + 2 (flat), 5-meter
L-Key pin Hexagon 2.5mm
