SafeLine SL6+ GSM 2G
*SL6-GSM
NOTE: This product has expired from our product range. Please contact your local SafeLine office for more information.
Product description
Product sheet
Technical data
IP: IP20
Other:
Emergency light output: 12V max 500 mA
Acoustic emergency signal output: 12V DC max 200 mA
Bluetooth 4.0, BLE 2,4 GHz
Battery voltage: 12V (lead battery)
Battery capacity: 1,2 Ah
Battery charge: 13.65 V, max. 200mA
Power supply: 230VAC, min: 6.4W, max: 9.4W

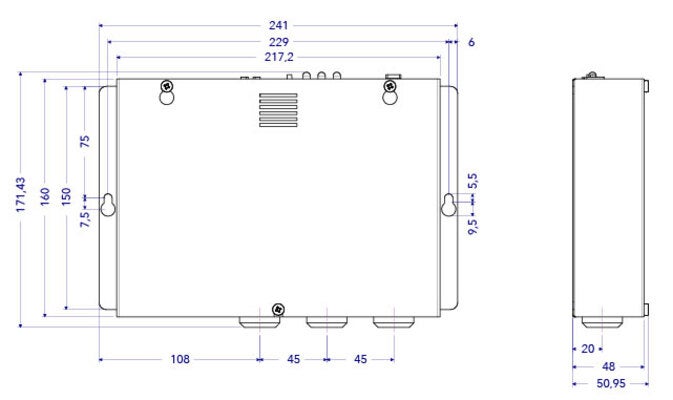

Size (HxWxD): 241 x 160 x 47 mm
Weight: 1700 g
Features
For all types of buildings
Connect up to six voice stations
Built-in wireless configuration
Intercom/Fire intercom support
Fallback functionality
Wide range of voice stations
Battery backup + automatic battery condition test
Fulfils EN81-28 and EN81-70
Included in package
3-meter SM Antenna SMS-M 3 db with magnetic foot
Telecommunication cable 5 meters, straight connection
Quick guide
Sticker ”hold down the button 3, 5 or 10 seconds”
Certificate
Product files
Certificates
Declaration of Conformity SL6 v2.22.pdf
Other files
SafeLine Voicestation Wiring Manual v.2.7.0 INT.pdf
Downloadable files
SafeLine_Pro_4.81.zip
SL6_493.zip
Manuals
SafeLine SL6 quick guide v.1.06.pdf
SafeLine SL6+ Manual v.4.2.0 EN.pdf
