Stand-alone encoder package for the FD4
*PG1
Encoder package for stand-alone FD4 floor display system
Product description

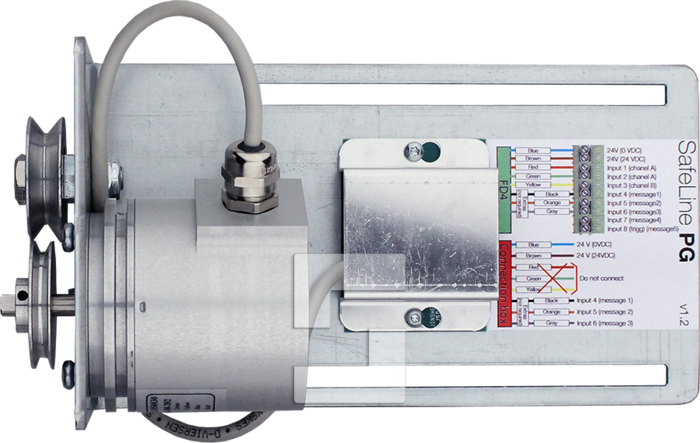

Encoder package for the FD4, enabling a floor display system independent from controller. Suited for buildings with machine room-less lifts or where it's problematic getting the signal from the controller. The encoder is installed on top of the car with the supplied kevlar cord running from top to bottom of the shaft, sending signals to be decoded by the FD4 and activating messages about its position.
Product sheet
Technical data
Power supply: 24VDC

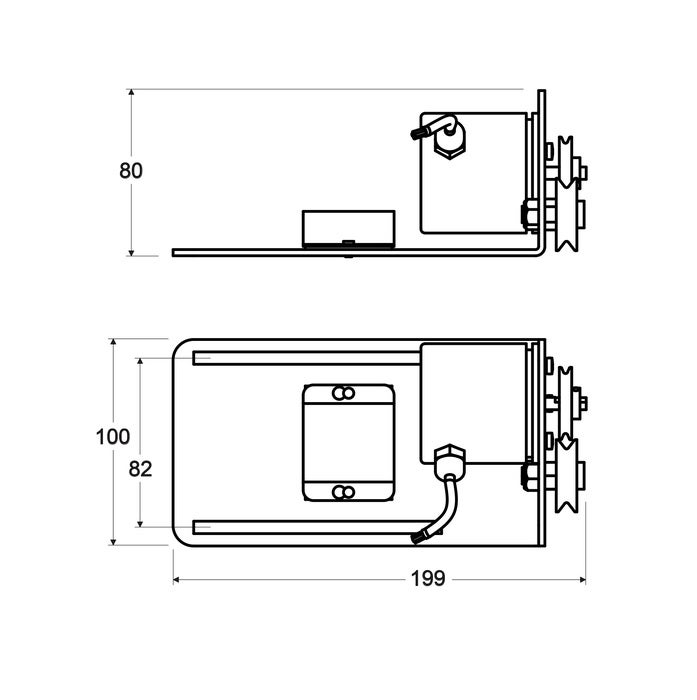

Size (HxWxD): 100 x 199 x 80mm
Weight: 1310g
Features
Independent from controller
30 meter kevlar cord included
Mounting accessories included
Automatic service log
Product files
Certificates
Declaration of Conformity PG1 v2.00.pdf
Manuals
SafeLine PG1 Installation v.3.1.0 INT.pdf
