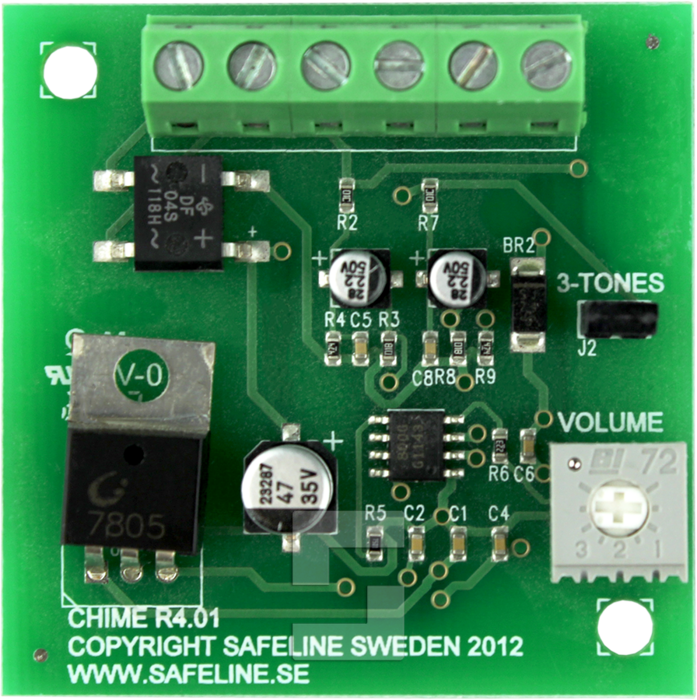

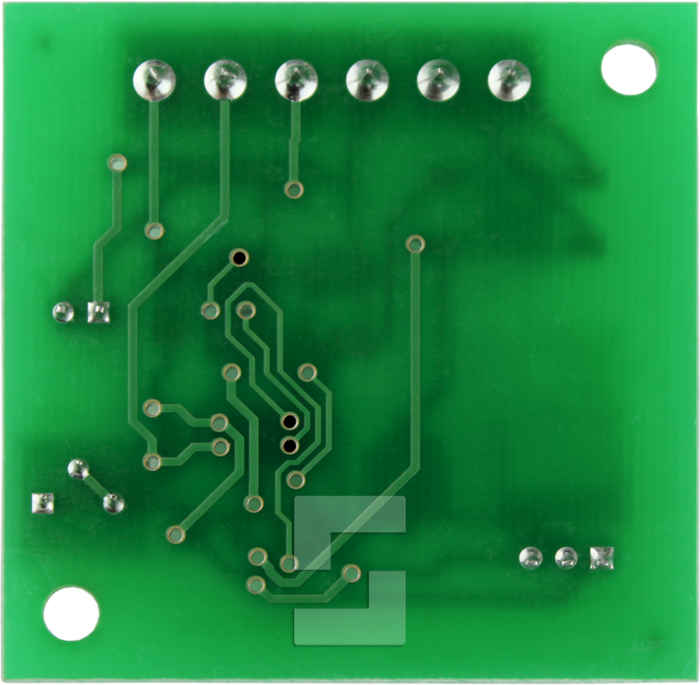

Arrival chime board
*CHIME02
CHIME 02 - three signals in a compact form
Product description
An arrival chime board signals about the arrival of the lift to the current floor and is installed for extended availability of information.
With a compact design of only 50x50 millimetres you easily fit the unit onto the floor plan, and with the pre-prepared screw holes you save time and installation is done smoothly. Decide for yourself which arrival chime that best suits your needs of the three different tones, and easily adjust the volume of the chime with the built-in potentiometer. Simple, and flexible.
Product sheet
Technical data
Power supply: +20 - 30 VDC

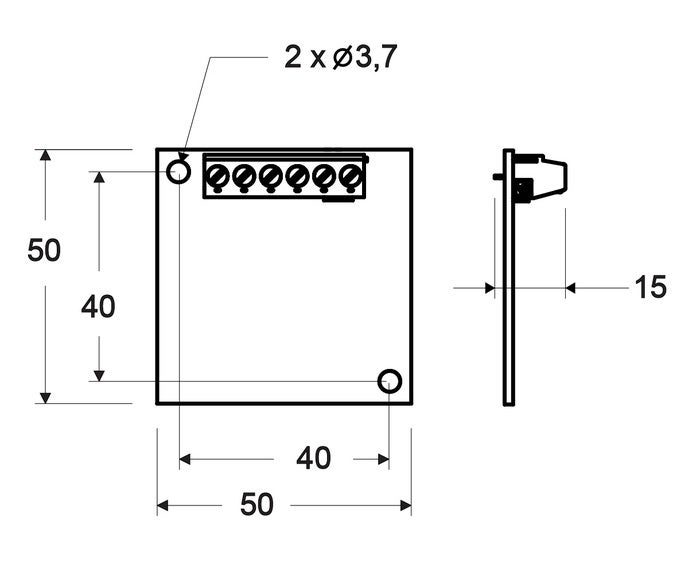

Size (HxWxD): 50 x 50 x 15 mm
Features
Choose between 3 different arrival chimes
Adjustable speaker volume
Compact size
Approved in accordance with EN81-70
Pre-prepared screw holes for easy mounting
Product files
Certificates
Declaration of Conformity Chime v2.00.pdf
Manuals
SafeLine Arrival Chime 02 v3.2.0 INT.pdf
