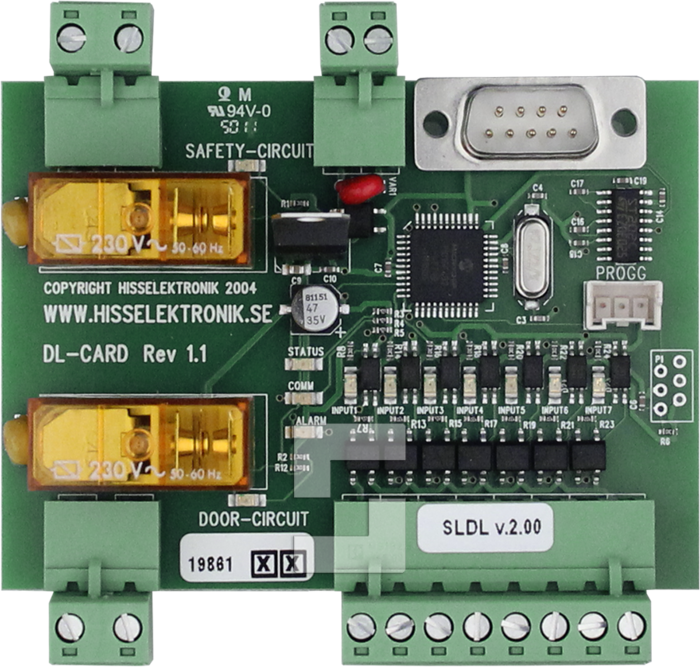

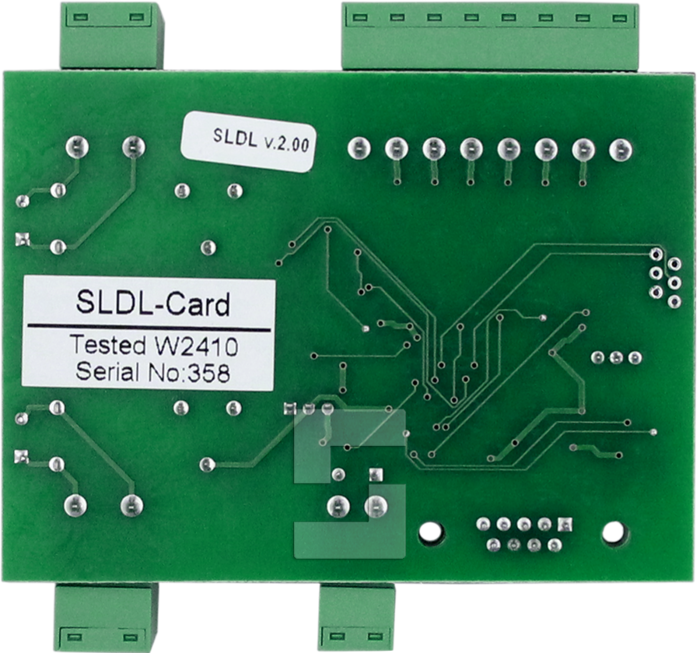

DL-Card Monitoring Card
*SLDL
DL-Card Monitoring Card
Product description
Monitoring card to send detailed information from the lift to SLCC. The alarms can be rerouted from SLCC as e-mails and/or SMS.
-
All inputs can be individually confi gured to send alarms after a preset number of count impulses or a specific time delay.
-
The DL-Card is compatible with the SafeLine 3000.
-
All alarms will be received and presented in SLCC with time, date, ID-code, type of failure and address.
-
Two 230VAC tolerant inputs and seven 24VDC tolerant inputs for start counters, photocells, fire alarm, overload etc.
Product sheet
Technical data
Current consumption: max 50mA
Power supply: 24VDC
Size (HxWxD): 96 x 89 x 50,75mm
Weight: 250 g
Product files
Certificates
Declaration of Conformity SLDL v2.00.pdf
Downloadable files
SafeLine_Pro_4.81.zip
Manuals
SafeLine SLDL Manual v4.01 EN.pdf
