SafeLine SL6 RJ45 to connector
*SLB-IF1
SLB-IF1 is a connection board that can be used as a supplement when installing lift emergency telephone SafeLine SL6.
Product description

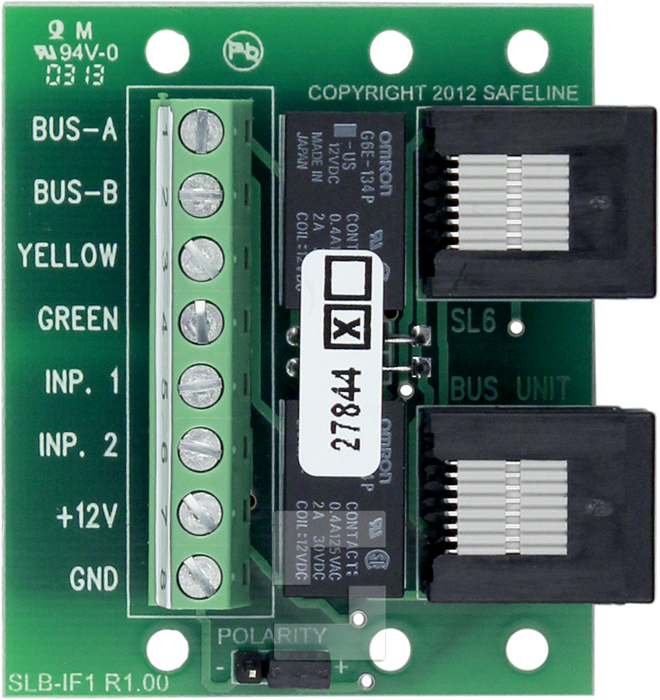

The connection board is connected in-between the main unit and the voice station with two RJ45 connectors. The SLB-IF1's screw terminal has the same connections as the screw terminals on some of the SL6 voice stations, making SLB-IF1 suitable for installations where there is not enough room for a screw terminal on the voice station.
By changing the jumper on the board it is possible to change the polarity of the external pictogram relays to + or -.
SLB-IF1 can be mounted using double side tape or on a DIN rail.
Product sheet
Technical data
Connector: RJ45

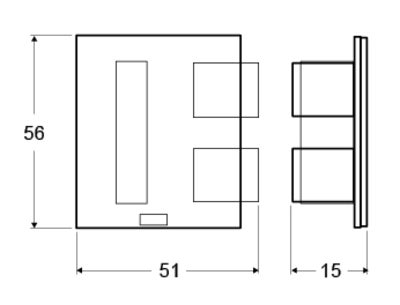

Size (HxWxD): 56 x 52 x 16 mm
Weight: 223 g
Features
RJ45 connection between main unit and voice station
Screw terminal for additional connections
Jumper for switching polarity (+/-) on external pictogram relays
Mounted with double sided tape or on a DIN rail
Included in package
Manual
Flat cable Cat6, 3-meter
Flat cable RJ45, 20 cm
DIN rail holder
