SafeLine EVAC entrance station, no front/key
*EVAC-ES0000
The intelligent entrance station and main unit in an EVAC intercom-system. A safe choice of fire communication that lives up to the European lift standards in fire safety
Product description

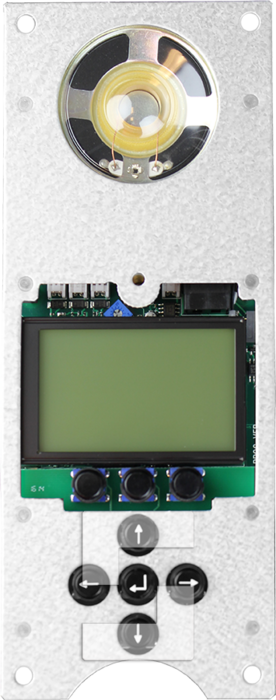

This version of the entrance station is delivered without a front plate and key switch, and is mounted behind already existing operating panel. With the station also follows a display for smooth configuration of the system and displaying information, a triangular key switch for activation of the system, a keypad for commandos, and also microphone and speaker for communication between car- and floor stations.
An EVAC intercom system enables communication between distressed and the building’s staff, in the event of a fire. By using the intercom stations in the system, the distressed are able to contact the entrance station from both the floor station and lift car station. On the entrance station’s intuitive display, staff can easily see on which floors there are people in need of evacuation and then, with the help of the keypad, choose which station they want to communicate with. The station’s distinct look in stainless-steel blends in in most buildings, and its functions give an intuitive and comprehensible impression – features that can potentially be life-saving in a stress-filled emergency.
The EVAC system is adapted according to your needs. Contact us today for ordering and we will help you get preciesly the system you need.
Product sheet
Technical data
Other:
Inputs: 4 x 24 VDC, max 200 mA in total, optically isolated
In standby: 40 mA
Active: 120 mA
Power supply: 24 VDC
Size (HxWxD): 215 x 84 x 30 mm
Features
Easy communication with other stations
Keypad for commands
Micro SD card to store parameters and settings
Mini USB connector for software updates
Product files
Brochures
SafeLine EVAC folder EN v.0.05 digital.pdf
Other files
SafeLine EVAC ordering info v1.08 EN.pdf
Manuals
SafeLine EVAC manual v.2.1.0 EN.pdf
