SafeLine EVAC car station COP
*EVAC-CS0000
The car station for intercom in the EVAC system
Product description

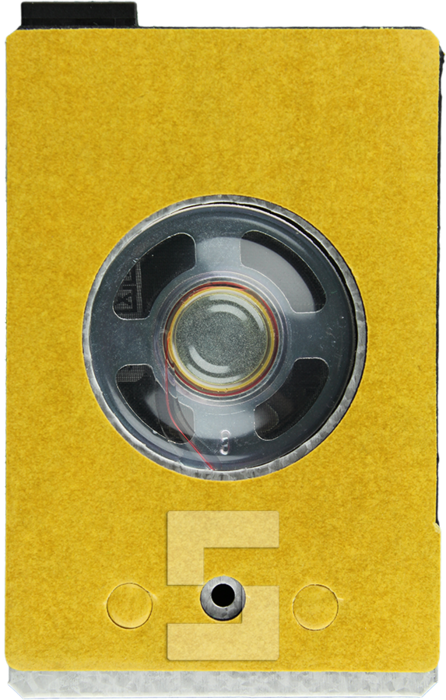

This car station is easily mounted in the lift car behind an already existing front plate with adhesive tape and is connected to the system via a RJ45-connection.
The unit enables communication between the lift car and the entrance station, so called intercom, making possible for people in an emergency to communicate with rescue personnel.
Product sheet
Technical data
Other:
Inputs: 2 x 24 VDC, max 100 mA, optically isolated
In standby: 30 mA
Active: 60 mA
Power supply: 24 VDC

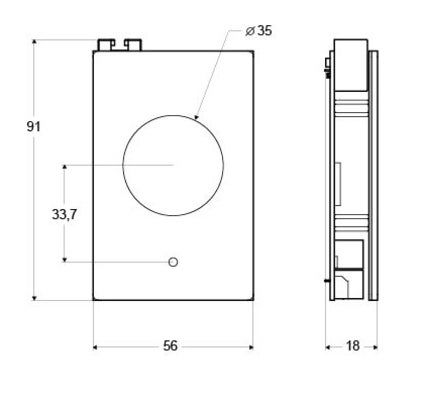

Size (HxWxD): 91 x 56 x 18 mm
Features
Easy mounting with adhesive tape
Product files
Brochures
SafeLine EVAC folder EN v.0.05 digital.pdf
Other files
SafeLine EVAC ordering info v1.08 EN.pdf
Manuals
SafeLine EVAC manual v.2.1.0 EN.pdf
